SWWF-590 SWD-2000 D-cam Motion Shrink packing machinery

Packing Process:Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the shrink tunnel,the film will be shrinked tightly around the product, At this time the whole shrink packing process is done.


Application Of Shrink Packing Machinery

Single unit shrink packed products, such as bowl instant noodles, card, food box, plastic bottle, incense coils, also suitable for collective shrink packed products like fruit-milk, pet bottles,daily necessities, etc.


Why Do Your Products Needs Be Shrink Packed?

1, Beautiful appearance, Film is very close to the goods, suitable for a variety of different shapes of goods packaging;

2, Good protection, it can have better protection for the inner packed product;

3, Good cleaning, especially suitable for precision instruments, high-precision electronic components packaging;

4. Reduce packaging costs. After replacing the carton with heat shrinkage, the cost can be reduced by at least 30%

5, Anti-theft. A variety of food can be wrapped together with a large shrink film to avoid loss;

6,The stability is good, the goods will not fall in the packaging film;

7, Transparency is good, customers can directly see the product content.Give the product a good opportunity to display itself.



Packing Samples of the shrink packing machinery

Parameters Of Shrink Packing Machinery

Max film width

590mm

Packing Sizes

L:70~600mm, W:20~200mm, H:5~120mm

Packing Speed

30-90packs/min

Packing material

PVC、POF、  PE  film

Power Consumption of Packing machine

4.7KW  single phase 220V

Power Consumption of shrink machine

16.3KW 380V

Size of Packing machine

5700×1250mm×1700mm

Size of shrink machine

2400×600mm×530mm

Weight

About 1500kg


Features Of Shrink Packing Machinery

1. Single or many in group packing;

2. Safety anti-cutting clutch equipment and no harm to the goods

3. Adopt servo motors,PLC and touchscreen based control for a more stable and reliable system with less trouble

4. Digital display with package length, speed and temperature adjustable separately, easy for use.

5. The different conveying types, ensuring no moving or reversal of the packing goods.

6.Save film and save material cost

7.Sealing more stable and better appearance

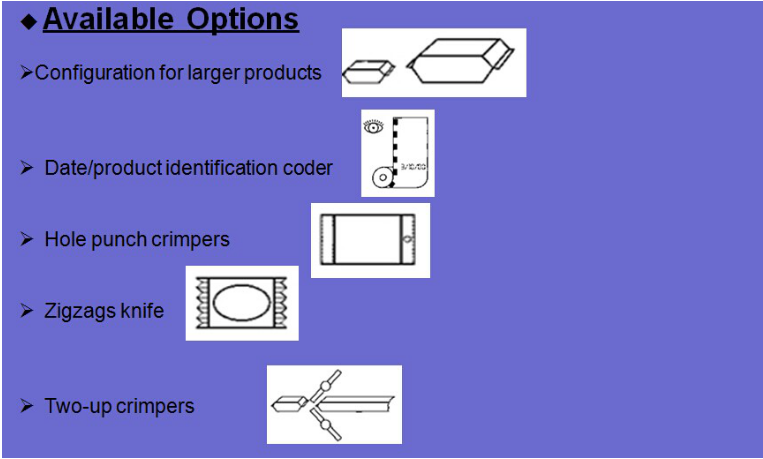

Auxiliary Equipment Of Shrink Packing Machinery

1. Date printer

2. Automatic bottle arranging machine

3. Automatic feeder

4. Automatic grouping equipment





Why Choose Us?

1. We are manufacture but not trade company.
2. We have professional staff who can advise you the suitable packing machine for your specific need.
3. Our professional workers will make the perfect packing machine for you.
4. Well trained and experienced staff will answer your inquiry timely.
5. We provide competitive price and fine quality packing machines.



Our Services :

We provide after-sale services both on-site service and email/phone services, the email/phone service will be free of charge.
if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine.
We also provide customized products according to customer's request.
