SWH-7017 Biscuit Over-wrap Type Packing Machine

Automatic Over wrapping packing machine is the biscuit packing machine that carries different types of products (e.g. round, rectangular, square, elliptical,angular) with different measurements by the help of its transporter and realizes packaging in the envelope form(End-folding type) by wrapping from above and sticking from the edges.

Application of Over Wrapping Type Automatic Packing Machine

Biscuit and wafer with different types of shapes (eg. Round, rectangular, square, elliptical, angular) with the different measurements

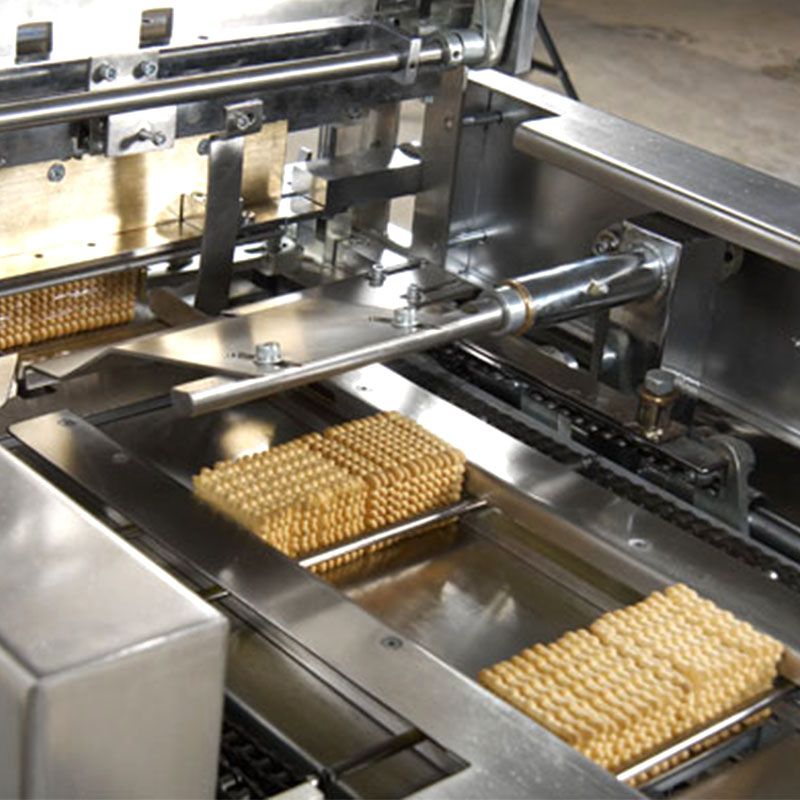

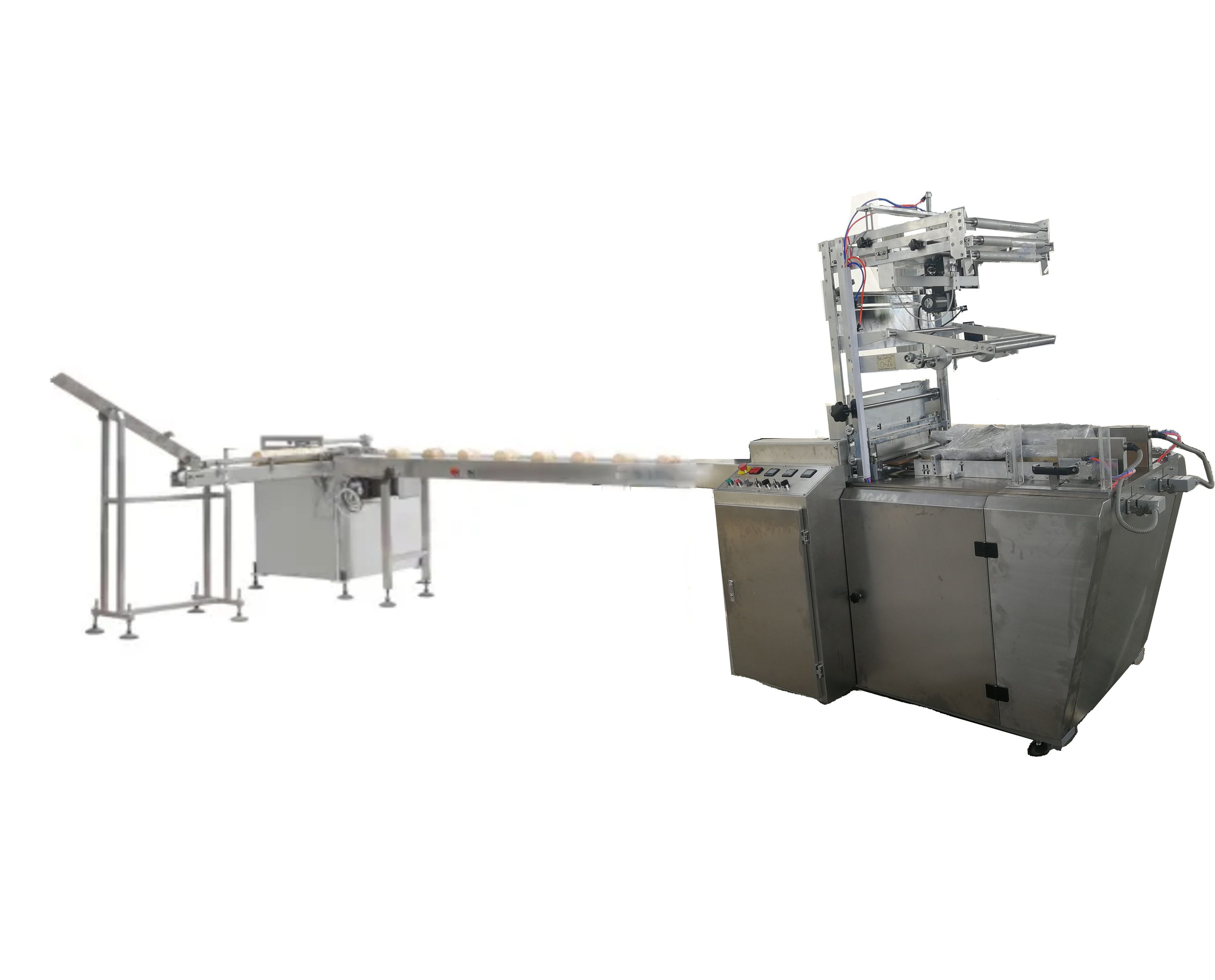

Pictures of The Over Wrapping Type Automatic Packing Machine

Packing Samples:

Features

Easy tear strip and beautiful appearance.

Saving packing material and the box space.

Adopting photo-electrical eye control system ensures correctly cutting position.

Engine stops in case of overload, High safety function.

Comparing with the manual sealing, could saving 10-15 labor cost

Infeed conveyor and chains are made of stainless steel

All the parts on the machine are stainless steel

All stroke adjustments can be done.

Speed adjust is done by digital device

Max diameter 80mm biscuits can be packed.

Circular, rectangular, square and oval products can be packed.

Single cutting blade.

Photocell hit system of machine is done by pneumatic piston

Cams are hardened after grinding.


Parameter

Packing item sizes

L:32-80mm,W:30-80mm,H:80-220mm

Machine sizes

4800mm×1100mm×1850mm

Machine weight

900KG

Total Power consumption

4kw

Electricity

3Phase 220v 50HZ

packing speed

0-45packs/min
