SWC-720 Series Automatic Flow Packing Machine

Packing Process:Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, At this time the whole packing process is done.


What is horizontal flow wrapper packaging machine?

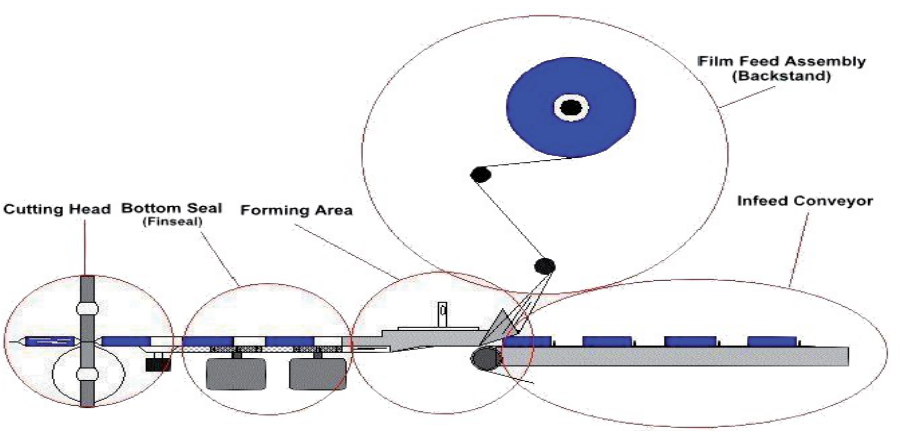

The drawing below shows a horizontal flow wrapper packing machine in motion:

The flow wrapper machine packages product by wrapping it in film. The flow wrapper machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.


Application of Horizontal Flow Wrapper Packaging Machine

The machine is used for the packaging of Washing foam, Popsicle, instant noodles, ice cream bar, moon cakes, biscuits, bread, meat food, frozen food, toilet soap, medicine tablets, plastic transfusion, incense coil, industrial products, plastic forks and knives etc.


Constituent Parts of Horizontal Flow Wrapper Packaging Machine

The packaging machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.


Why choose us
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products


Parameters of Horizontal Flow Wrapper Packaging Machine

Max width of film

720mm

Packaging  range

L:53~300mm, W:20~100mm, H:5~120mm

Packing  speed

30-220Bag/min

Category of  film

Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE

Power of main motor

1.5KW

Power of  electrical

2.5KW

Total   power

4.6KW   single   phase   220V

Overall dimension L×W×H

5700×1050mm×1700mm

Weight

About   1000kg


Features of Horizontal Flow Wrapper Packaging Machine

1.The main circuit is multi-points PLC control, accurate, reliable and with stable performance.

2.Adopting the frequency converter to step-less speed regulation.

3.Accurate temperature control, direct display and convenient setting.  Accurate pack length and reliable packing speed.

4.Forward and reverse intelligent tracing is used to increase the tracing precision and reduce tracing time, in order to reduce the amount of waste products.

5.The machine will be stopped at a predetermined position when stopped, so to prevent film from burning-up.


Auxiliary equipment for Horizontal Flow Wrapper Packaging Machine

1.Date code printer

2.Automatic feeder



Why choose us?

1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
