Automatic Shrink Packing Machine(Rotary Type)
Packing Process:Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the shrink tunnel,the film will be shrinked tightly around the product, At this time the whole shrink packing process is done.
Application of Heat Shrink Automatic Packing Machine
Single unit shrink packed product, such as bowl instant noodles, card, food box, plastic bottle, incense coil, also suitable for collective shrink packed products like fruit-milk bottles, drinks bottles, boxes,daily necessities, etc.
Why Does Your Product Need Be Shrink Packed?
1, Beautiful appearance, Film is very close to the goods, suitable for a variety of different shapes of goods packaging;
2, Good protection, it can have better protection for the inner packed product;
3, Good cleaning, especially suitable for precision instruments, high-precision electronic components packaging;
4. Reduce packaging costs. After replacing the carton with heat shrinkage, the cost can be reduced by at least 30%
5, Anti-theft. A variety of food can be wrapped together with a large shrink film to avoid loss;
6,The stability is good, the goods will not fall in the packaging film;
7, Transparency is good, customers can directly see the product content.Give the product a good opportunity to display itself.

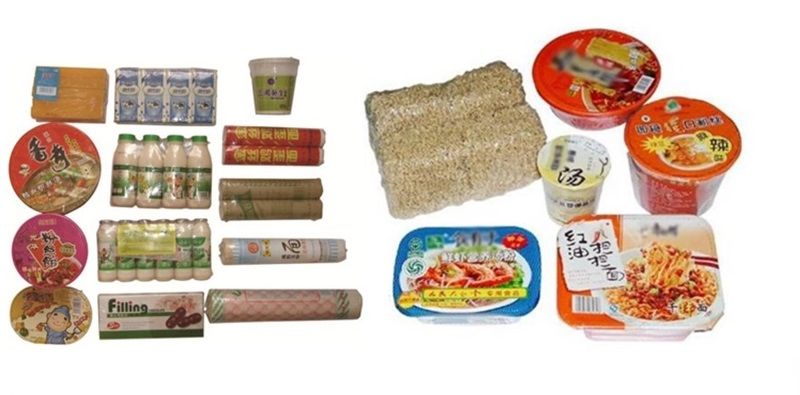

Packing Samples of Shrink Automatic Packing Machine
Parameter of Shrink packing machine
Max film width | 590mm |
Packing Sizes | 70~600mm, 20~200mm, 5~110mm |
Packing Speed | 30-120bags/min |
Packing material | PVC、POF、 PE |
Power Consumption | 4.7KW single phase 220V |
Power Consumption of shrink machine | 19KW 380V |
Size of Packing machine | 7400×1250mm×1800mm |
（Size of shrink machine | 2400×600mm×530mm |
Weight | About 1500kg |
Features of Shrink Packing Machine
1. Single or group packaging;
2. Safety anti-cutting clutch equipment and no harm to the goods.
3. PLC based control for a more stable and reliable system with less trouble.
4. .Digital display with package length, speed and temperature adjustable separately, easy for use.
5. The different conveying types, ensuring no moving or reversal of the packing goods.
6.The design of mechanical structure is simple and reasonable, which makes the operation easy and adjustment convenient.
7.Waste recycling device could be available.
Auxiliary Eequipment For Shrink Automatic Packing Machine
1. Date printer
2. Automatic feeder
3. Automatic grouping equipment
4. Change to touch screen panel
Our Services
We provide after-sale services both on-site service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine.
We also provide customized products according to customer's request.
